Linea

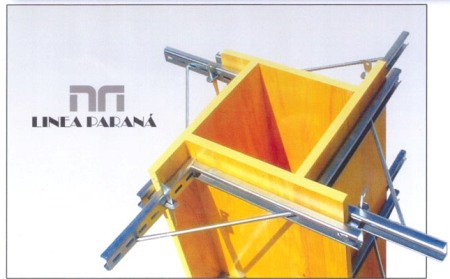

CONCRETE FORMS

pacote de vigas

SPECIFICATIONS CONCRETE FORMS
As the result of globalization, a new concept for this market has been developed. The LP Hölz panel is formed by 3 equal layers of wood crossed with each other to have greater strength and support weight, per European specifications and tested here in Brazil, by USP (University of Sao Paulo). LP Holz is eco-friendly, since the manufacturing comes from our reforestations, with FSC certification completely free of tropical timber.


Available Sizes

pacote de vigas

Thickness: 21 and 27 mm Width: 500 mm Lengths: 1000, 1500, 2000, 2500 and 3000mm

Special measurements available, respecting the maximum width of 500 mm and 3000 mm in length. Standard pallets are available with 84 pieces in 27 mm and 108 pieces in 21 mm.


CONCRETE FORMS

Six trial samples between LP Holz (21 mm and 27) and high quality 18 mm plywood carried out by USP-EESC show the following comparative results:

  LP HOLZ
21mm
LP HOLZ
27mm
Plywood
18mm
Moment of inertia - I - cm4 39 82 24
Resistance Module - W - cm3 37 61 27
Elasticity Module - EOM in KGF/CM2 80.000 90.130 53.235
Flexibility - MOR in KGF/CM2 338 367 293

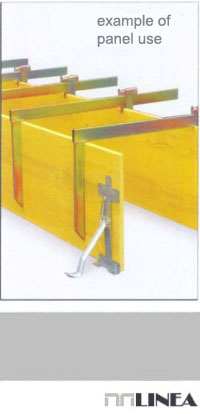

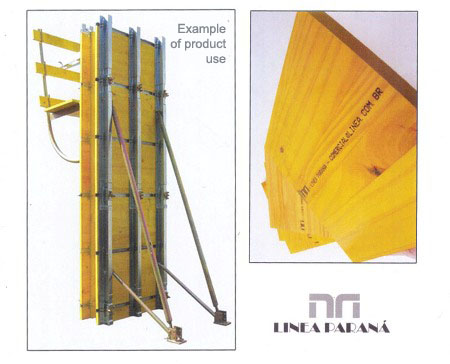

amostra utilização de painel
